CERATIZIT’s overhauled milling cutter range handles even the most challenging materials

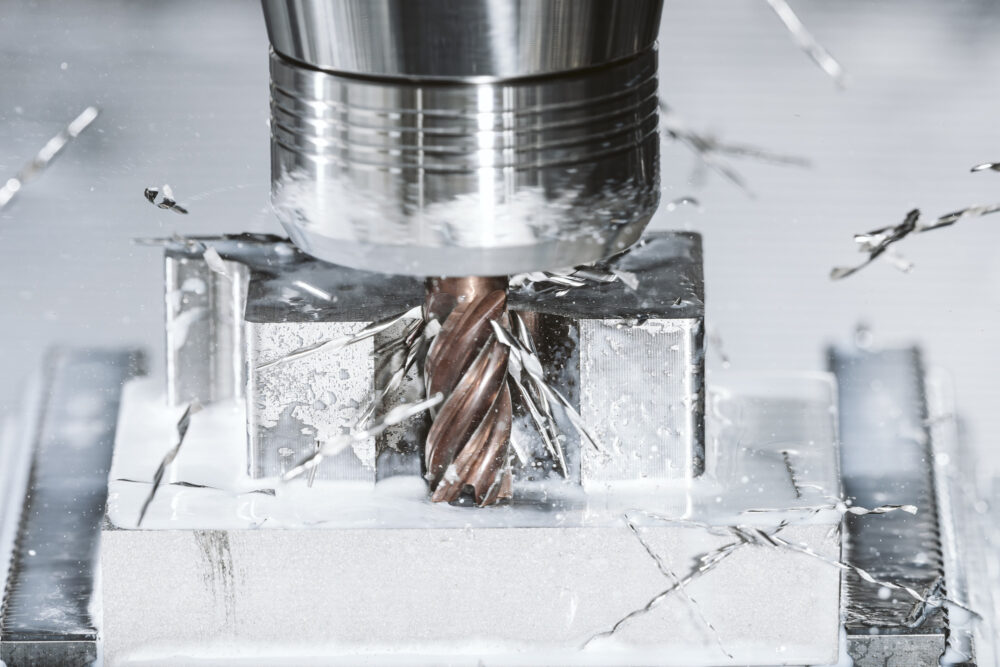

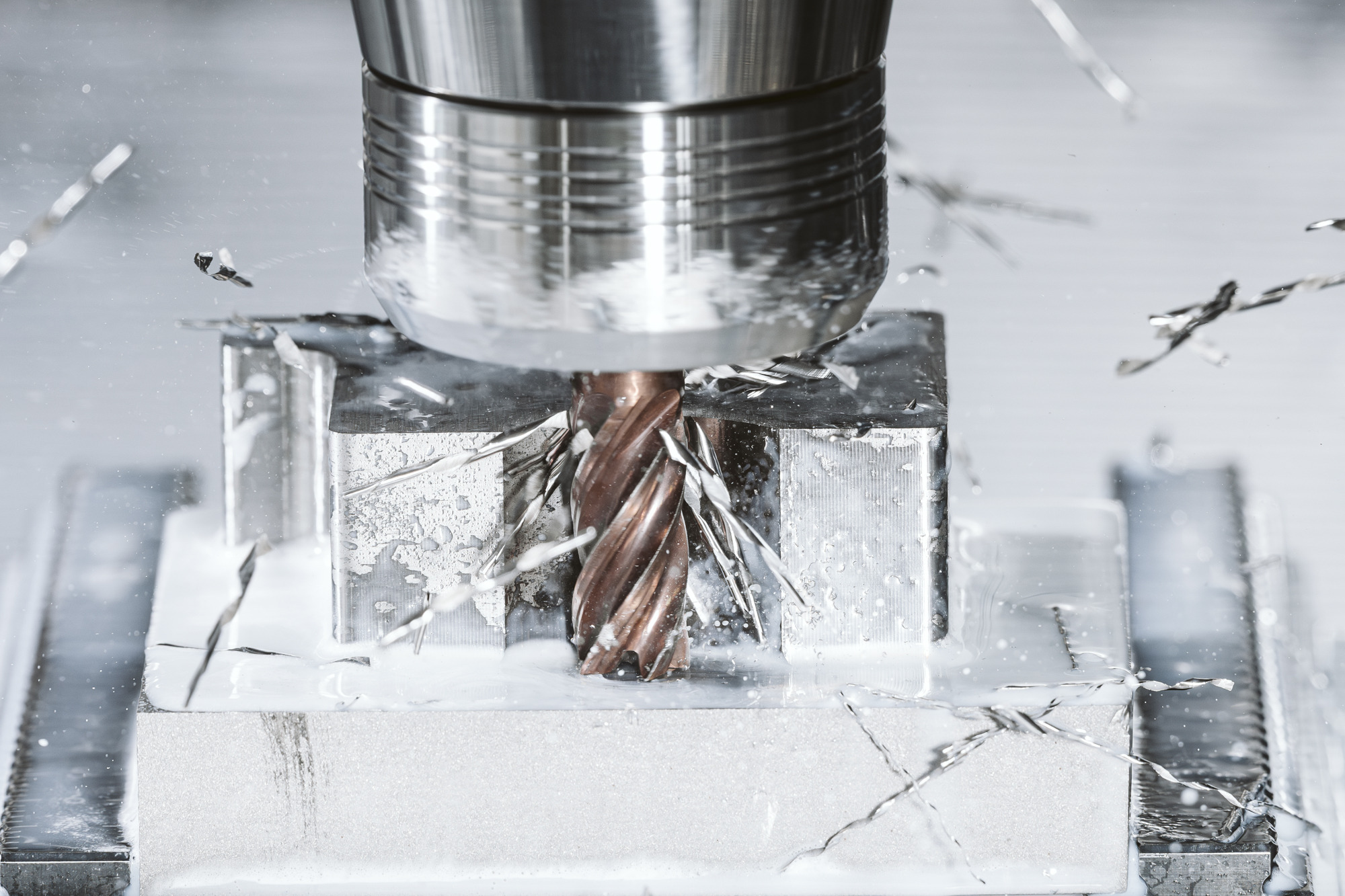

When machining materials like nickel-based or titanium alloys, the limits of efficient manufacturing can often be reached more quickly than might be preferred. In order to deal with this and remain successful in the top tier of machining, CERATIZIT has reimagined its MonsterMill – ISO-S range of milling cutters. The perfectly balanced combination of carbide, coating and geometry provides sturdy tools that a deliver smooth cutting action every time. Alongside our proven 4- and 5-edge cutters, the line-up now includes the perfect finisher: the new 6-edge MonsterMill – ISO-S.
The machining of Inconel, Hastelloy, Waspaloy and other nickel-based alloys (e.g. NiCr19Fe18Nb5Mg) is significantly more demanding than conventional materials and relentlessly drives up machining costs. The high tensile strength of the material, combined with its extreme hardness rapidly accelerates tool wear. Only tools designed specifically for this material – like the MonsterMill – ISO-S from CERATIZIT – can minimise wear, maximise tool life and guarantee reliable processes.
Adapted geometry counteracts vibrations and heat
“Machining nickel-based alloys comes with its own set of particular challenges,” says Michael Wucher, Global Product Manager – Solid Carbide Milling. One of these is the material’s low thermal conductivity, which means the heat is concentrated in the tool instead of dispersing into the material. “To deal with this, we adapted the geometry of the new milling cutters to keep the heat generated in the machining process as low as possible. The polished chip flutes and optimised coating minimise friction and ensure an efficient chip flow.”
The irregular pitch of the cutting edges and a variable helix angle effectively minimise vibrations, which significantly increases the tool’s machining performance and helps to prevent tool breakage. This also significantly increases the workpiece’s surface quality and reduces the need for further rework in the process.
Regrindability prolongs tool life and increases sustainability
The tool’s microgeometry has also been precisely tailored to the specific material. A special, precision-engineered cutting edge preparation reduces the cutting forces and stabilises the cutting edges, which in turn significantly increases the tool life. “And because regrinding was already taken into account when designing the new product, the overall construction provides clear benefits in the regrinding process,” says Michael Wucher.
The DPX22S Dragonskin coating, developed specifically for these milling cutters, was designed for use on nickel-based alloys. It is applied in 4–6 µm-thick layers and provides high thermal stability and outstanding wear resistance thanks to its special layer structure.
Perfect for the aerospace sector
The MonsterMill ISO-S is available as a 4-edge cutter in two different lengths with a diameter range of 3–20 mm. These tools are available with shank types HA and HB. All milling cutters have a corner radius of RE 0.2–5.0 mm. The 5-edge cutter is also available with shank types HA and HB with a diameter range of 3–16 mm and with various corner radii. The new 6-edge cutter is available with diameters of 6–16 mm and shank type HA. The tools have a corner radius of 0.2–2 mm, meaning that the most common dimensions in the aerospace industry are covered and even custom sizes can be provided on request. Michael Wucher provides a glimpse of what’s to come: “We are already planning some interesting practical additions to the range, which will further enhance the versatility of the ISO-S specialists.”
CERATIZIT also has further solutions in its portfolio for machining heat-resistant materials such as titanium and various super alloys that are commonly used in the aerospace industry. One example is the MaxiMill – 211-DC indexable insert milling system, made using an additively manufacturing process, which provides targeted cooling for temperature control and enhanced tool life thanks to its ideal nozzle position. Michael Wucher: “When it comes to aluminium machining, we also have high-performance tools such as the brand-new AluLine high-volume milling cutter in our range. Whichever materials you need to machine, we have everything you need for the ideal machining solution!”
